ahmet guzererler 5d5bd4a3cb
feat(ui): scoped graph nodes per ticker + MockEngine for LLM-free UI testing (#100)
* feat(ui): scoped graph nodes per ticker + MockEngine for LLM-free UI testing

## Summary
Adds a MockEngine that streams scripted agent events with zero real LLM calls,
enabling full UI testing (graph, terminal, drawer, metrics) without API keys or
network. Also fixes the ReactFlow graph so that each ticker/identifier gets its
own visual node — previously an auto run with 5 tickers collapsed all pipelines
into the same node IDs, overwriting each other.

## Changes
- **MockEngine** (`agent_os/backend/services/mock_engine.py`): new class that
  generates realistic scripted events for pipeline, scan, and auto run types.
  Supports configurable speed divisor (1× realistic → 10× instant). Auto mock
  accepts a `tickers` list for multi-ticker runs.
- **POST /api/run/mock** (`runs.py`): new endpoint wiring MockEngine into the
  BackgroundTasks + store pattern identical to real run endpoints.
- **WebSocket routing** (`websocket.py`): added `mock` run-type branch so the
  WS executor path also dispatches to MockEngine when the background task hasn't
  started yet.
- **LangGraphEngine** (`langgraph_engine.py`): added `_run_identifiers` dict to
  track ticker/MARKET/portfolio_id per run; all emitted events now carry an
  `identifier` field so the frontend can scope them.
- **AgentGraph.tsx**: ReactFlow nodes now keyed by `node_id:identifier` (e.g.
  `news_analyst:AAPL`, `news_analyst:NVDA`). Edges scoped to same identifier.
  `onNodeClick` passes raw `node_id` + `identifier` separately so the event
  drawer can filter without parsing the scoped key.
- **Dashboard.tsx**: Mock button + type/speed controls added. `openNodeDetail`
  accepts identifier; `NodeEventsDetail` filters by both `node_id` and
  `identifier`. Comma-separated ticker input for mock auto runs (e.g.
  `AAPL,NVDA,TSLA`).
- **useAgentStream.ts**: `AgentEvent` interface extended with `identifier?`
  field.

## Decision Context
- Scoped node ID format chosen as `node_id:identifier` (colon separator) rather
  than embedding identifier in the agent display name — keeps node labels clean
  and identifier visible as a coloured badge, not label text.
- Raw `node_id` and `identifier` stored separately in `node.data` so the drawer
  filtering (`events.filter(e => e.node_id === nodeId && e.identifier === id)`)
  does not need to parse/split the scoped key.
- Parent edges are scoped to the same identifier as the child, assuming intra-
  ticker chains. Cross-run topology edges (e.g. scan → pipeline) are implicit
  via log events, not ReactFlow edges.
- MockEngine uses `asyncio.sleep` with a speed divisor — higher speed values
  give faster replays for rapid iteration during UI development.

## Considerations for Future Agents
- Re-run button on graph nodes already uses `identifier` to dispatch
  `startRun('pipeline', { ticker: identifier })` or `startRun('scan')` — no
  further changes needed for per-node re-runs to be correctly scoped.
- The `_run_identifiers` dict in LangGraphEngine is keyed by `run_id`; it is
  cleaned up after each run. If parallel runs are ever supported per engine
  instance, this dict handles them correctly already.
- For run_auto, each sub-run (scan, per-ticker pipeline) calls its own
  `run_scan`/`run_pipeline` which sets `_run_identifiers[run_id]`. The outer
  `run_auto` does not set it — this is intentional.
- `uv.lock` changes reflect dependency tree after Chainlit removal in the
  previous commit; no new runtime dependencies were added by this PR.

---
🤖 Commit Agent | Session: mock-engine + scoped-graph-nodes

* feat(graph): two-phase column layout — scan top, ticker columns below

## Summary
Redesigns the ReactFlow graph layout engine so scan nodes form a centred funnel
at the top and each ticker gets its own vertical column below, matching the
agreed design. Ticker header cards (bold ticker symbol + pulse dot + progress
counter) act as column anchors; agent cards stack beneath each one. Fan-out
dashed edges connect macro_synthesis → each ticker header.

## Changes
- SCAN phase: geopolitical/market-movers/sector scanners placed on the same
  horizontal row at x = [0, COL_WIDTH, 2×COL_WIDTH] (aligns with first 3
  ticker columns); industry_deep_dive and macro_synthesis centered below.
- TICKER columns: new identifiers get a TickerHeaderNode at tickerStartY;
  agent nodes stack beneath using column-based parent tracking
  (header → agent0 → agent1 → …) independent of evt.parent_node_id.
- TickerHeaderNode: wide card, bold ticker symbol, animated pulse status dot,
  completedCount/agentCount counter updated live as results arrive.
- Tool nodes (node_id starts with "tool_") skipped from graph — visible in
  terminal/drawer, not cluttering the column layout.
- Portfolio nodes centred below all ticker columns.
- Layout state extracted into LayoutState ref + freshLayout() for clean resets.
- Node labels use toLabel() (snake_case → Title Case).
- Metrics row shows total tokens (in+out) instead of just latency.

## Decision Context
- Column-based parent edges chosen over evt.parent_node_id because mock engine
  emits parent_node_id="start" for all agents; column ordering is reliable.
- Scan phase X positions reuse COL_WIDTH so phase-1 scanners visually align
  above first three ticker columns — no arbitrary magic numbers.
- Tool nodes removed from graph (not hidden) — they add noise to column layout
  with no actionable meaning; the drawer already shows them per node.

## Considerations for Future Agents
- identifierLastNode tracks scoped ID of previous agent per ticker column —
  used for sequential edge chaining; do not remove without replacing edge logic.
- tickerStartY is set once on first ticker arrival; subsequent tickers share
  the same Y baseline — only colCount and identifierAgentRow differ per ticker.
- TickerHeaderNode clicks pass node_id='header' + identifier to onNodeClick;
  Dashboard NodeEventsDetail filters all events by identifier when node_id is
  'header' (shows the full ticker run timeline in the drawer).

---
🤖 Commit Agent | Session: two-phase column graph layout
2026-03-24 10:03:16 +01:00
.claude removed hooks 2026-03-20 12:58:21 +01:00
agent_os feat(ui): scoped graph nodes per ticker + MockEngine for LLM-free UI testing (#100) 2026-03-24 10:03:16 +01:00
assets chore(release): v0.1.0 – initial public release of TradingAgents 2025-06-05 04:27:57 -07:00
cli merge: sync with upstream TauricResearch/TradingAgents v0.2.2 2026-03-23 12:17:25 +00:00
docs Add stop_loss and take_profit fields to Trade entries in database, API, and UI 2026-03-23 21:12:01 +00:00
tests Merge pull request #98 from aguzererler/copilot/add-trades-with-stop-loss 2026-03-24 01:11:37 +01:00
tradingagents Merge branch 'main' into feature/portfolio-resumability-and-cleanup 2026-03-24 03:32:09 +01:00
.DS_Store skills 2026-03-19 10:32:29 +01:00
.env.example feat: make reports root directory configurable via env var 2026-03-24 00:15:04 +01:00
.gitignore feat: Add portfolio resumability, extend report saving, and gitignore uv.lock 2026-03-23 23:44:34 +01:00
CLAUDE.md feat: add agentic memory scaffold and migrate tracking files to docs/agent/ 2026-03-17 17:14:11 +01:00
LICENSE chore(release): v0.1.0 – initial public release of TradingAgents 2025-06-05 04:27:57 -07:00
PLAN.md feat: medium-term positioning upgrade (debate rounds, TTM, peer comparison, macro regime) (#14) 2026-03-17 22:27:40 +01:00
README.md merge: sync with upstream TauricResearch/TradingAgents v0.2.2 2026-03-23 12:17:25 +00:00
benchmark.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
benchmark_append.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
benchmark_csv.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
benchmark_engine.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
benchmark_full.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
benchmark_iteration.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
benchmark_list.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
benchmark_v2.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
benchmark_v3.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
benchmark_v4.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
benchmark_v5.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
main.py fix: allow .env variables to override DEFAULT_CONFIG values 2026-03-21 23:26:37 +01:00
package-lock.json feat: Resolve "main_portfolio" alias in portfolio routes and improve LangGraph content extraction robustness with new unit tests. 2026-03-23 10:02:52 +01:00
parse_again.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
parse_issue.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
pyproject.toml merge: sync with upstream TauricResearch/TradingAgents v0.2.2 2026-03-23 12:17:25 +00:00
requirements.txt chore: consolidate install, fix CLI portability, normalize LLM responses 2026-03-22 21:38:01 +00:00
run_benchmark_6.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
run_test.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
test.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
test2.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
test_agent_os_connection.py feat: Implement `init-portfolio` CLI command and add WebSocket streaming support. 2026-03-22 22:55:48 +01:00
test_cache.csv Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
test_df.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
test_opt.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
test_pd.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00
test_pyarrow.py Optimize DataFrame column lowercasing in stockstats_utils.py 2026-03-21 21:47:43 +00:00

README.md

arXiv Discord WeChat X Follow
Community

TradingAgents: Multi-Agents LLM Financial Trading Framework

News

  • [2026-03] TradingAgents v0.2.2 released with GPT-5.4/Gemini 3.1/Claude 4.6 model coverage, five-tier rating scale, OpenAI Responses API, Anthropic effort control, and cross-platform stability.
  • [2026-02] TradingAgents v0.2.0 released with multi-provider LLM support (GPT-5.x, Gemini 3.x, Claude 4.x, Grok 4.x) and improved system architecture.
  • [2026-01] Trading-R1 Technical Report released, with Terminal expected to land soon.

🎉 TradingAgents officially released! We have received numerous inquiries about the work, and we would like to express our thanks for the enthusiasm in our community.

So we decided to fully open-source the framework. Looking forward to building impactful projects with you!

🚀 TradingAgents | Installation & CLI | 🎬 Demo | 📦 Package Usage | 🤝 Contributing | 📄 Citation

TradingAgents Framework

TradingAgents is a multi-agent trading framework that mirrors the dynamics of real-world trading firms. By deploying specialized LLM-powered agents: from fundamental analysts, sentiment experts, and technical analysts, to trader, risk management team, the platform collaboratively evaluates market conditions and informs trading decisions. Moreover, these agents engage in dynamic discussions to pinpoint the optimal strategy.

TradingAgents framework is designed for research purposes. Trading performance may vary based on many factors, including the chosen backbone language models, model temperature, trading periods, the quality of data, and other non-deterministic factors. It is not intended as financial, investment, or trading advice.

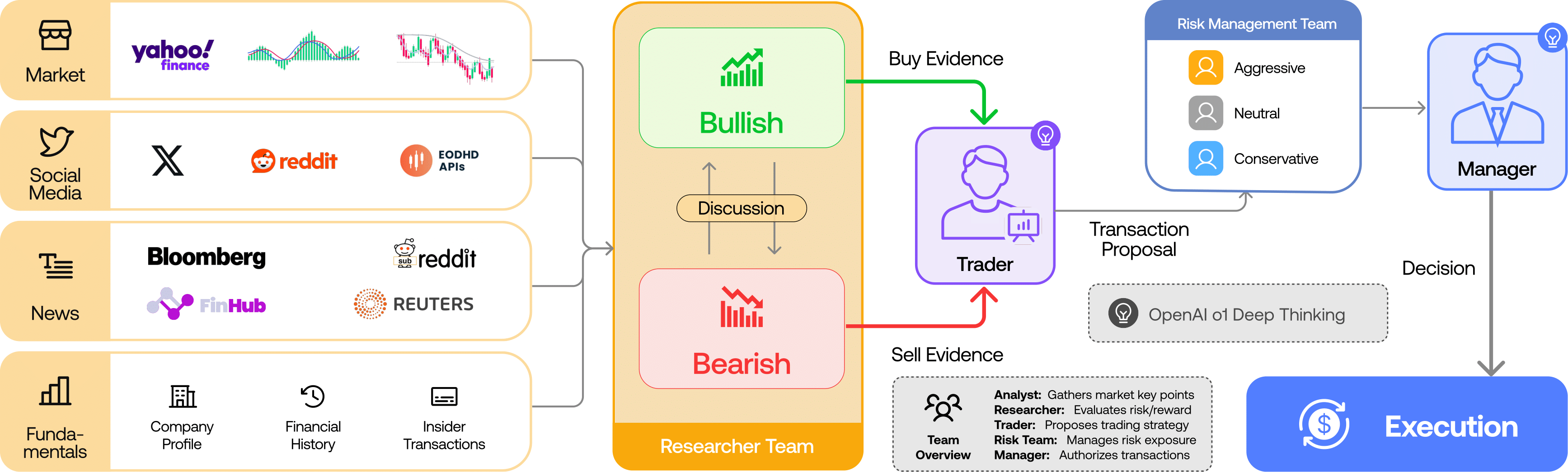

Our framework decomposes complex trading tasks into specialized roles. This ensures the system achieves a robust, scalable approach to market analysis and decision-making.

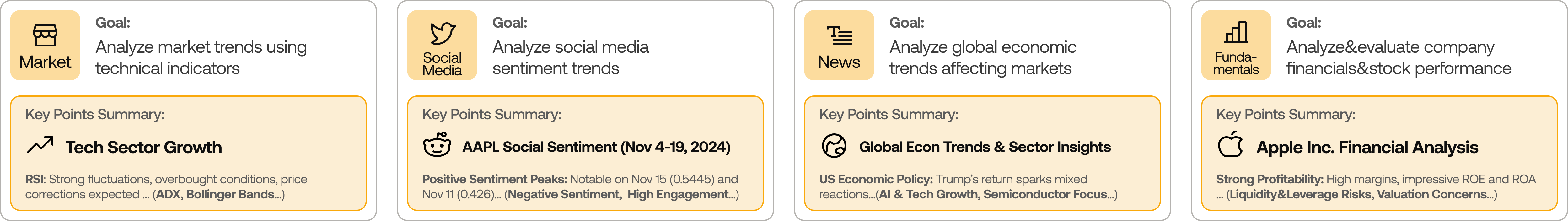

Analyst Team

  • Fundamentals Analyst: Evaluates company financials and performance metrics, identifying intrinsic values and potential red flags.
  • Sentiment Analyst: Analyzes social media and public sentiment using sentiment scoring algorithms to gauge short-term market mood.
  • News Analyst: Monitors global news and macroeconomic indicators, interpreting the impact of events on market conditions.
  • Technical Analyst: Utilizes technical indicators (like MACD and RSI) to detect trading patterns and forecast price movements.

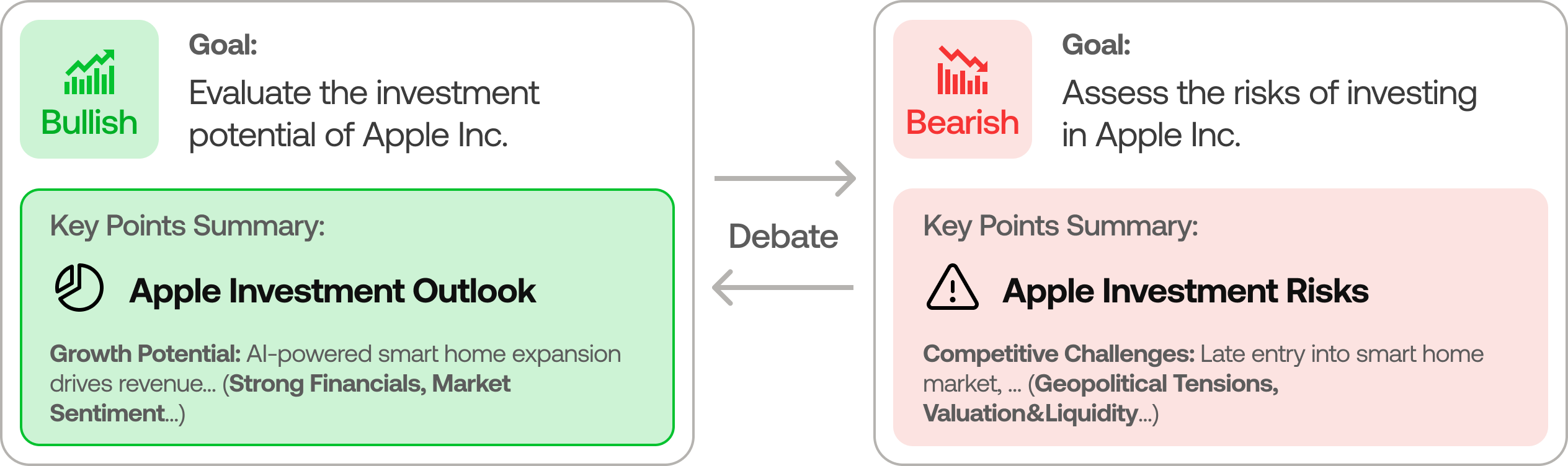

Researcher Team

  • Comprises both bullish and bearish researchers who critically assess the insights provided by the Analyst Team. Through structured debates, they balance potential gains against inherent risks.

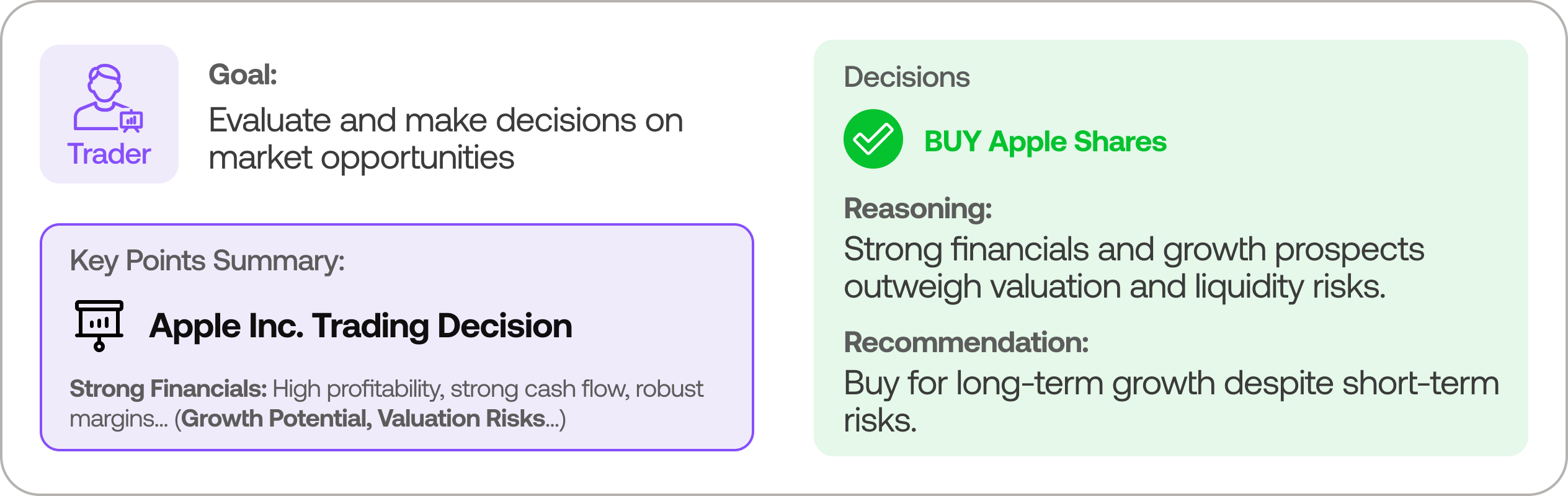

Trader Agent

  • Composes reports from the analysts and researchers to make informed trading decisions. It determines the timing and magnitude of trades based on comprehensive market insights.

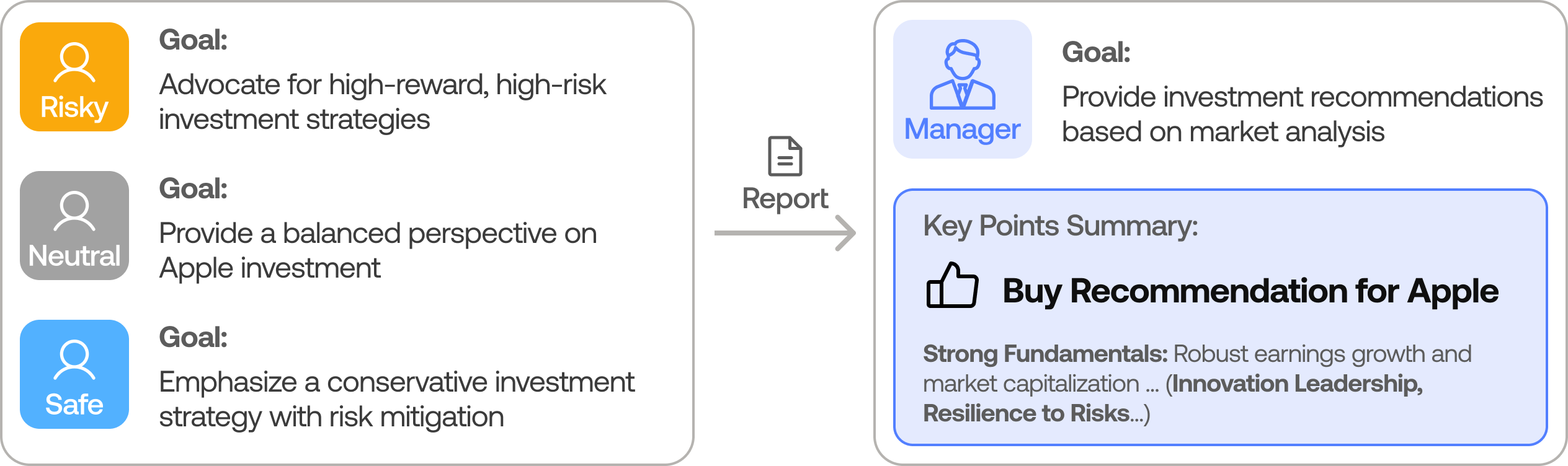

Risk Management and Portfolio Manager

  • Continuously evaluates portfolio risk by assessing market volatility, liquidity, and other risk factors. The risk management team evaluates and adjusts trading strategies, providing assessment reports to the Portfolio Manager for final decision.
  • The Portfolio Manager approves/rejects the transaction proposal. If approved, the order will be sent to the simulated exchange and executed.

Installation and CLI

Installation

Clone TradingAgents:

git clone https://github.com/TauricResearch/TradingAgents.git
cd TradingAgents

Create a virtual environment in any of your favorite environment managers:

conda create -n tradingagents python=3.13
conda activate tradingagents

Install the package and its dependencies:

pip install .

Required APIs

TradingAgents supports multiple LLM providers. Set the API key for your chosen provider:

export OPENAI_API_KEY=...          # OpenAI (GPT)
export GOOGLE_API_KEY=...          # Google (Gemini)
export ANTHROPIC_API_KEY=...       # Anthropic (Claude)
export XAI_API_KEY=...             # xAI (Grok)
export OPENROUTER_API_KEY=...      # OpenRouter
export ALPHA_VANTAGE_API_KEY=...   # Alpha Vantage

For local models, configure Ollama with llm_provider: "ollama" in your config.

Alternatively, copy .env.example to .env and fill in your keys:

cp .env.example .env

CLI Usage

Launch the interactive CLI:

tradingagents          # installed command
python -m cli.main     # alternative: run directly from source

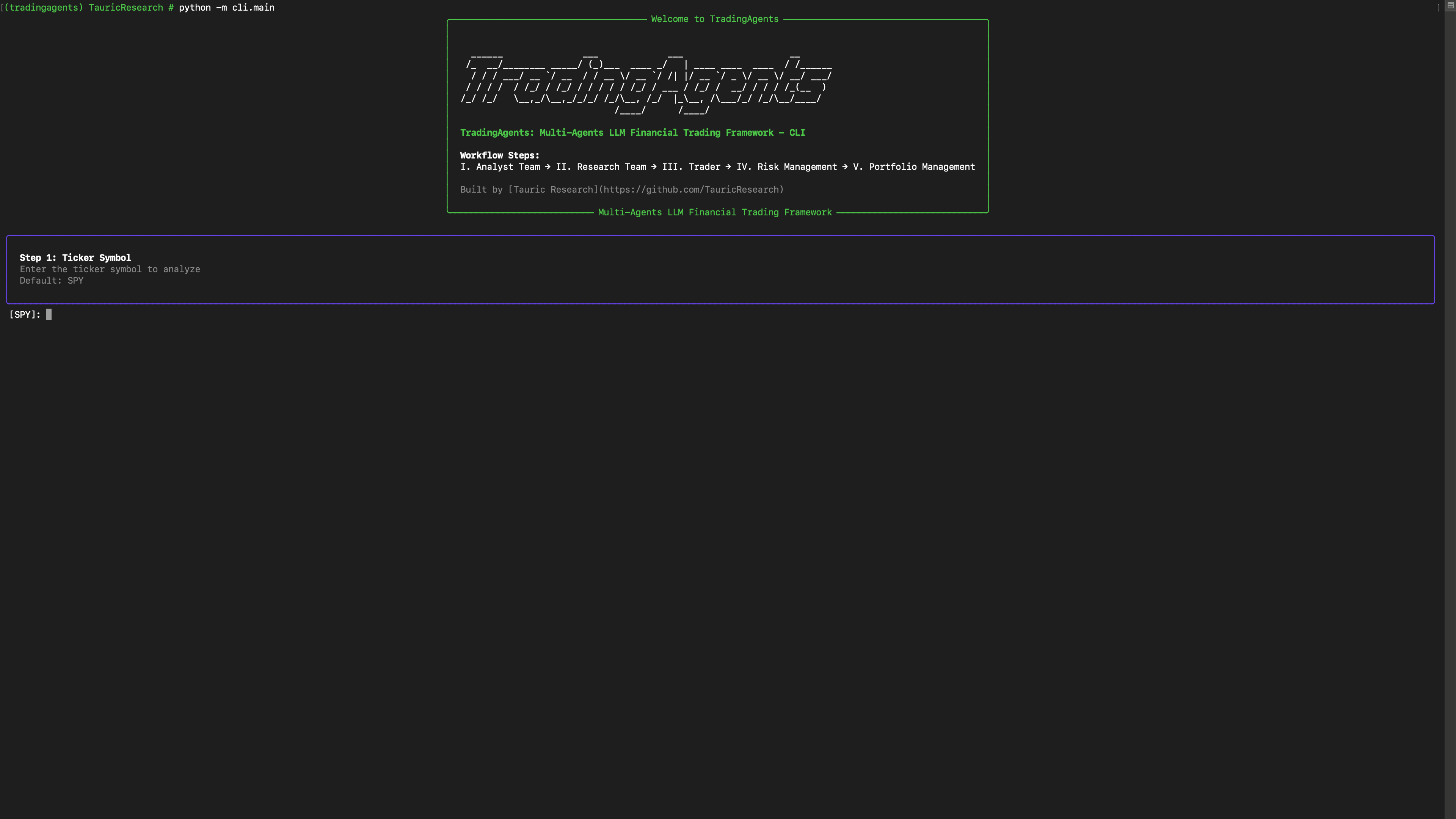

You will see a screen where you can select your desired tickers, analysis date, LLM provider, research depth, and more.

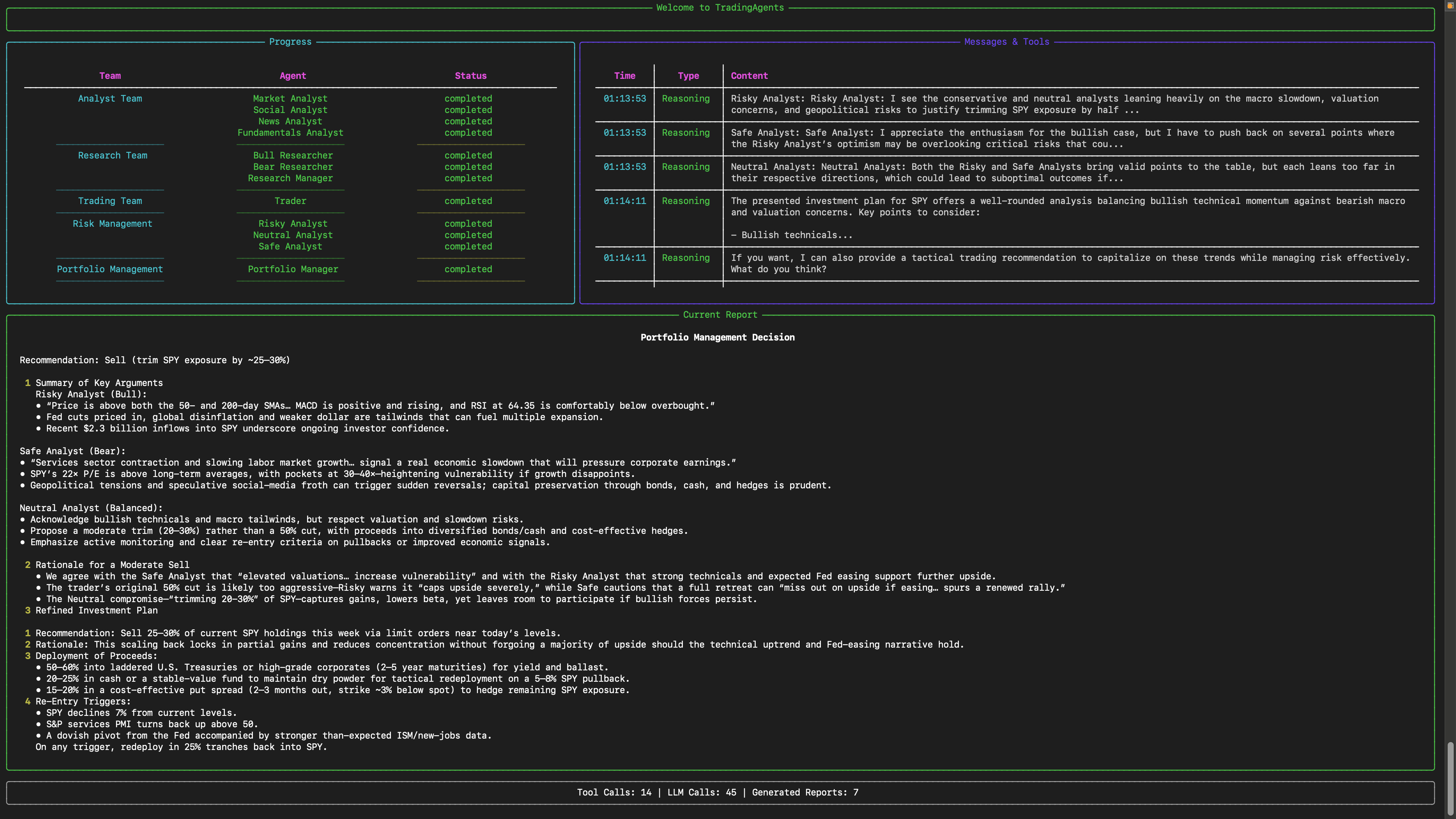

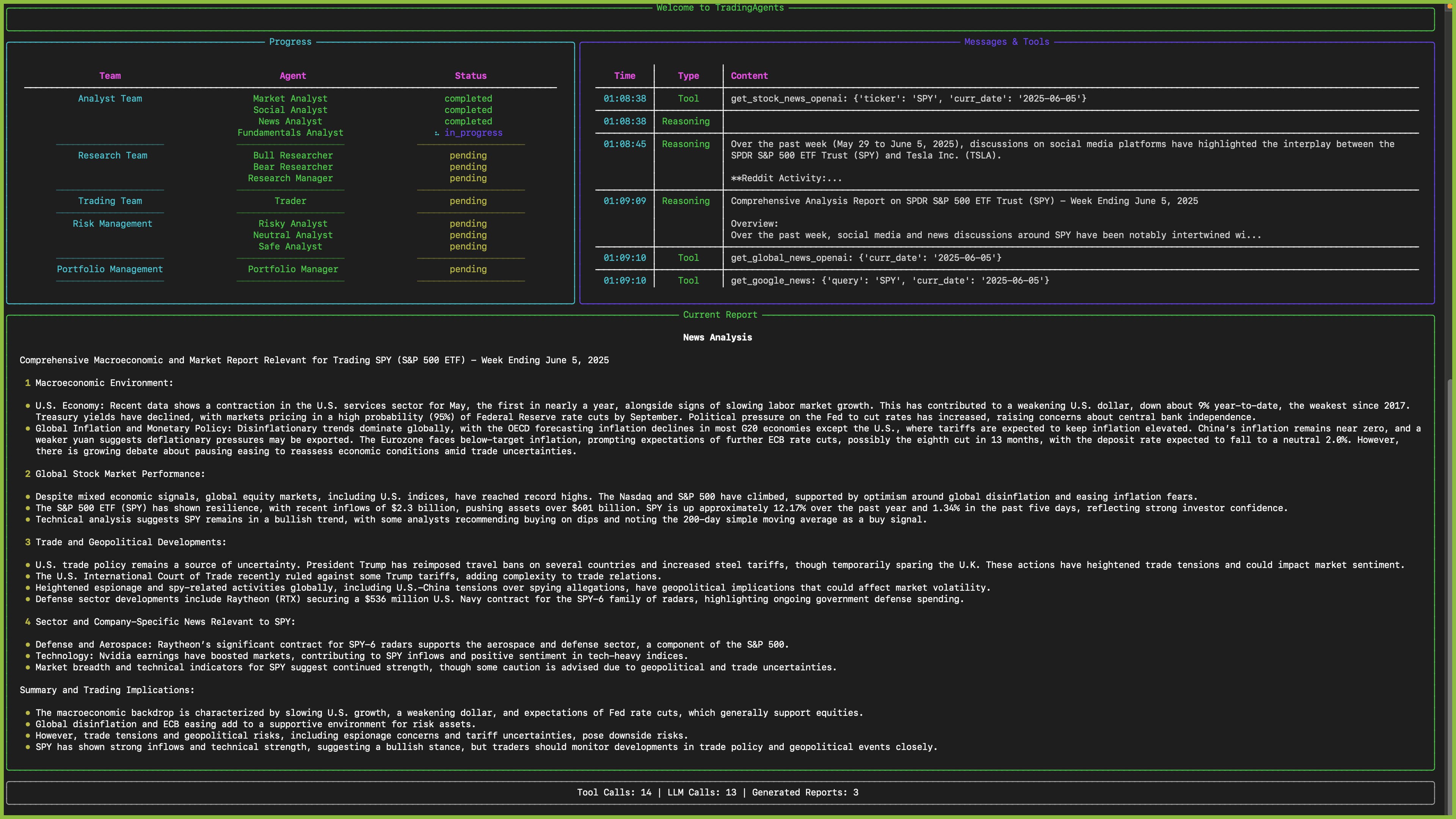

An interface will appear showing results as they load, letting you track the agent's progress as it runs.

CLI Commands

Command Description
analyze Interactive per-ticker multi-agent analysis (select analysts, LLM, date)
scan Run the 3-phase macro scanner (geopolitical → sector → synthesis)
pipeline Full pipeline: macro scan JSON → filter by conviction → per-ticker deep dive
portfolio Run the Portfolio Manager workflow (requires portfolio ID + scan JSON)
check-portfolio Review current holdings only — no new candidates
auto End-to-end: scan → pipeline → portfolio manager (one command)

Examples:

# Per-ticker analysis (interactive prompts for ticker, date, LLM, analysts)
python -m cli.main analyze

# Run macro scanner for a specific date
python -m cli.main scan --date 2026-03-21

# Run the full pipeline (scan → filter → per-ticker analysis)
python -m cli.main pipeline

# Run portfolio manager with a specific portfolio and scan results
python -m cli.main portfolio

# Review current holdings without new candidates
python -m cli.main check-portfolio --portfolio-id main_portfolio --date 2026-03-21

# Full autonomous mode: scan → pipeline → portfolio
python -m cli.main auto --portfolio-id main_portfolio --date 2026-03-21

Running Tests

# Install dev dependencies
pip install -e ".[dev]"

# Run all unit tests (integration and e2e excluded by default)
python -m pytest tests/ -v

# Run only portfolio tests
python -m pytest tests/portfolio/ -v

# Run a specific test file
python -m pytest tests/portfolio/test_models.py -v

# Run tests with coverage (requires pytest-cov)
python -m pytest tests/ --cov=tradingagents --cov-report=term-missing

Note: Integration tests that require network access or database connections auto-skip when the relevant environment variables (SUPABASE_CONNECTION_STRING, FINNHUB_API_KEY, etc.) are not set.

TradingAgents Package

Implementation Details

We built TradingAgents with LangGraph to ensure flexibility and modularity. The framework supports multiple LLM providers: OpenAI, Google, Anthropic, xAI, OpenRouter, and Ollama.

Python Usage

To use TradingAgents inside your code, you can import the tradingagents module and initialize a TradingAgentsGraph() object. The .propagate() function will return a decision. You can run main.py, here's also a quick example:

from tradingagents.graph.trading_graph import TradingAgentsGraph
from tradingagents.default_config import DEFAULT_CONFIG

ta = TradingAgentsGraph(debug=True, config=DEFAULT_CONFIG.copy())

# forward propagate
_, decision = ta.propagate("NVDA", "2026-01-15")
print(decision)

You can also adjust the default configuration to set your own choice of LLMs, debate rounds, etc.

from tradingagents.graph.trading_graph import TradingAgentsGraph
from tradingagents.default_config import DEFAULT_CONFIG

config = DEFAULT_CONFIG.copy()
config["llm_provider"] = "openai"        # openai, google, anthropic, xai, openrouter, ollama
config["deep_think_llm"] = "gpt-5.2"     # Model for complex reasoning
config["quick_think_llm"] = "gpt-5-mini" # Model for quick tasks
config["max_debate_rounds"] = 2

ta = TradingAgentsGraph(debug=True, config=config)
_, decision = ta.propagate("NVDA", "2026-01-15")
print(decision)

See tradingagents/default_config.py for all configuration options.

Contributing

We welcome contributions from the community! Whether it's fixing a bug, improving documentation, or suggesting a new feature, your input helps make this project better. If you are interested in this line of research, please consider joining our open-source financial AI research community Tauric Research.

Citation

Please reference our work if you find TradingAgents provides you with some help :)

@misc{xiao2025tradingagentsmultiagentsllmfinancial,
      title={TradingAgents: Multi-Agents LLM Financial Trading Framework},
      author={Yijia Xiao and Edward Sun and Di Luo and Wei Wang},
      year={2025},
      eprint={2412.20138},
      archivePrefix={arXiv},
      primaryClass={q-fin.TR},
      url={https://arxiv.org/abs/2412.20138},
}
